Ortofon 2M Bronze Hi-fi cartridge

1 Review(s)
Article number:
Availability: In stock
Delivery time: Shipped within 2-3 workingdays
€379,99
€399,00
Incl. tax

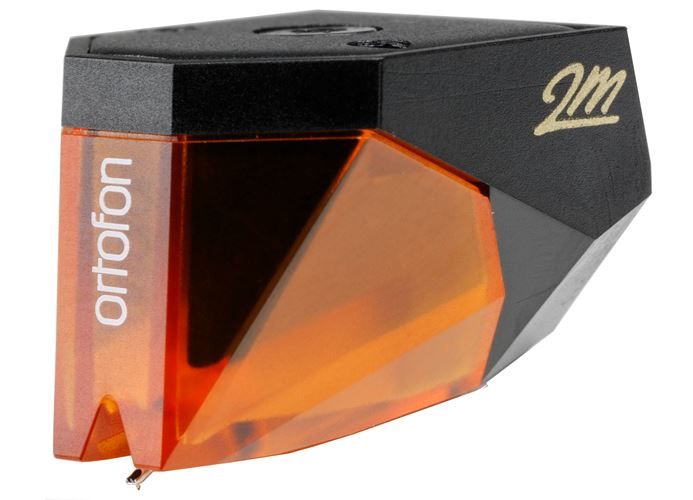

Ortofon 2M Bronze


The 2M Bronze adds even more resolution and detail in an evenhanded way to the 2M series. Spare needles can be ordered separately when a replacement is needed.



Specs:

  • Output voltage at 1000 Hz, 5cm/sec.  -  5 mV
  • Channel balance at 1 kHz  -  1 dB
  • Channel separation at 1 kHz  -  26 dB
  • Channel separation at 15 kHz  -  15 dB
  • Frequency range at - 3dB  -  20-29.000 Hz
  • Frequency response  -  20-20.000 + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force  -  80 µm
  • Compliance, dynamic, lateral  -  22 µm/mN
  • Stylus type  -  Nude Fine Line
  • Stylus tip radius  -   r/R 8/40 µm
  • Tracking force range  -  1,4-1,7g (14-17 mN)
  • Tracking force, recommended  -  1,5 g (15 mN)
  • Tracking angle  -  20°
  • Internal impedance, DC resistance  -  1,2 kOhm
  • Internal inductance  -  630 mH
  • Recommended load resistance  - 47 kOhm
  • Recommended load capacitance  -  150-300 pF
  • Cartridge colour, body/stylus  -  Black/Bronze
  • Cartridge weight  -   7,2 g
  • Replacement stylus unit  -  2M Bronze (interchangeable with 2M Black)

This brand new cartridge comes in an original Ortofon packaging.

No specifications found...
1 Review(s)
Add your review »
Zijdezacht element. Veel verfijndere klank dan de Red en Blue. Kost wat meer, maar zeker een aanrader !
Review by Frank, Posted on 19-06-2017, 5 Stars.


5 stars based on 1 reviews
