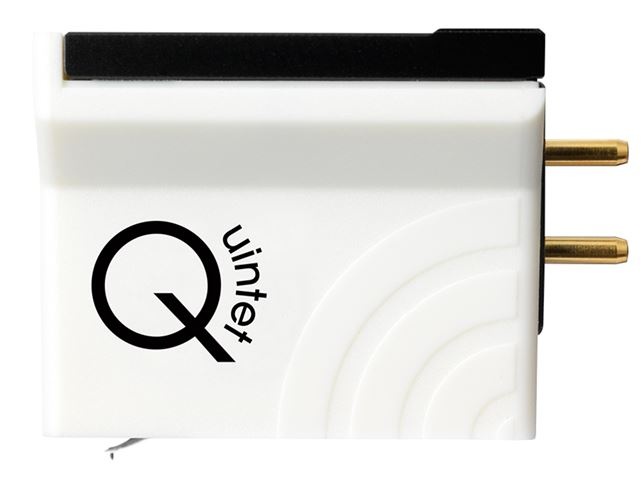

Quintet Mono MC

A True Mono from Ortofon

It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.

Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The LH-4000 headshell is specially recommended for MC Quintet cartridges series.

Specs:

• Output voltage at 1 kHz 5 cm/sec - 0.3 mV
• Frequency response 20 Hz - 20 kHz - +/-2.0 dB
• Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
• Compliance, dynamic, lateral - 15 μm/mN
• Stylus type - Nude Elliptical
• Stylus tip radius - r/R 8/18 μm
• Tracking force range - 2.1-2.5 g (21-25 mN)
• Tracking force recommended - 2.3 g (23 mN)
• Tracking angle - 20º
• Internal impedance, DC resistance - 5 Ohm
• Recommended load impedance - >20 Ohm
• Cartridge body material - ABS/Aluminium
• Coil wire material - Pure 4-nines silver/Ag
• Cartridge colour - White
• Cartridge weight - 9 g

*) Typical value

Accesories:

• 1 x Stylus brush
• 1 x Screwdriver
• 2 x Screw M2,5 x 5

Download the MC Quintet series userguide here

Download the MC Quintet series brochure here
